Download:

Painterly Animation (Win32, 540 kB)

Videos:

All videos are AVI encoded with WMV9, and are between 50-150kB.

	Sphere	Beach Ball	Master Rai
Plain	Video	Video	Video
Strokes Follow Edges	Video	Video	Video
Strokes Follow Edges and XY Jittered	Video	Video	Video

Overview:

The application is an implementation of the technique outlined by Barbara J. Meier's paper "Painterly Rendering for Animation" (SIGGRAPH '96). The project allows one to render scenes and objects in a painterly style. It works by placing particles across the surfaces involved in a scene, where each particle represents a brush stroke, and by using 2D reference images and the 3D pointset, painterly animations with minimal temporal artifacts can be produced. Noise can be added to the strokes intentionally, to push further the illusion that the frames were drawn individually by an artist.

Features:

• Realtime (or near real-time) rendering of animation frames
• Interactively rotate and zoom the object
• Adapts stroke size, colour and orientation based on 2D renderings
• Introduce noise into each frame to give animations a more natural, human-drawn feel
• Output animations as AVI video (no codec used for compression at the moment)

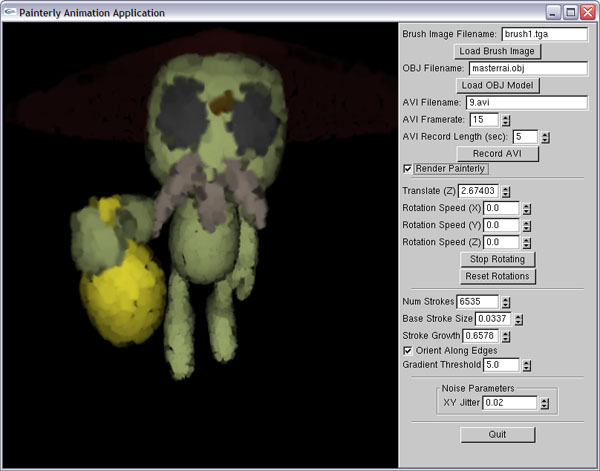

Instructions:

• Load a scene. The file must be a triangle mesh in OBJ format. Type the filename where it says "OBJ Filename", and press "Load OBJ Model" (default that works provided)
• Select a brush. Specify the filename of the brush used where it says "Brush Image Filename", and press "Load Brush Image" (default that works provided)
• You should see a scene rendering. To see the scene with painterly rendering, check the box "Render Painterly"
• You may rotate the object you are viewing by using the "Rotation Speed" sliders.
• You may have to adjust some parameters when rendering the scene. Parameters include:
  • Number of strokes used to render object
  • The base stroke size (a relative value based on the dimensions of the object)
  • The stroke growth, which specifies how much larger strokes should be rendered when the surface normal points toward the camera
• The rendered strokes can be oriented along the edges that appear in the polygon rendering. To activate this feature, check the box labelled "Orient Along Edges". The "Gradient Threshold" slider adjusts the minimum gradient magnitude to contribute to stroke orientation.

Sphere, polygon rendered	Sphere, stroke rendered	Beach ball, polygon rendered
Beach ball, stroke rendered	Master Rai model	Master Rai, polygon rendered
Master Rai, stroke rendered	Master Rai, render for stroke size	Master Rai, showing brush strokes

Implementation Details:

The project was implemented in C++. Libraries used include: OpenGL (graphics), DevIL (image processing), GLUI (user interface widgets). Uses a modified Vector class originally by Allen Sherrod. Uses a wrapper class to interface with the Video for Windows library, author unknown.

The components of this project I implemented are:

• The user interface - windows managed with GLUT, wrote OpenGL code for perspective projection, and set up the right pane that has all the widgets by manipulating objects from the GLUI library
• OBJ model importer - a class I implemented for a game I had been working on. There is no restriction on the shape of the object you load, it can be an entire scene as long as it is a triangular mesh. It also supports textured objects (with TGA format texture file).
• Creating the particle set - I implemented a routine which places some number of particles n on the triangular faces of a mesh. To make the particle distribution even, I assign each triangle a floating point value which indicates how much that triangle needs an additional particle. The formula I use to determine this value for each triangle t is:

  AmountTriangleNeedsStroke(t)=SurfaceArea(t)/(CurrentParticles(t)+1.0)

  Therefore, particles with large surface area and those which do not already have many particles are favoured for particle placement. As I add each of the n particles to the most needy triangle t, I immediately update the needy value for t for subsequent iterations. The particles are placed randomly on their triangles, to avoid artifical-looking patterns.

• Particle rendering attributes - For each frame of animation, colour, size and orientation attributes can change for each particle.

  To update size attributes quickly, I place an OpenGL light at the camera position, and render the geometry without texture in a uniform colour (white). The intensities of the rendered image can be used to determine the size of the stroke - higher intensity corresponds to a surface normal which points closer to the camera. Strokes whose normal points to the camera should be drawn larger than those that are not. I then use the gluProject function to index into these intensities which correspond to size; gluProject maps the 3D world coordinate of each particle to the 2D image space.

  To update the colour attribute, I render the geometry with the texture and slightly convolve it with a blurring filter. Again, gluProject gives the 2D coordinate which is used to index into the image and obtain the right colour. Occasionally, some brush strokes will flicker, as there is aliasing occuring and the colour at a particular pixel alternates in this rendering. The purpose of the convolution is to help reduce this effect.

  To update the orientation attribute, I use the convolved textured geometry rendering again. I compute the spatial derivatives of the rendering. I use gluProject to determine a 2D image index, and then compute the orientation at that point. The orientation is a normalized weighted sum of the arctan of gradients within a local neighbourhood in image space (I completely reused the code here that I wrote for my Impressionist Painter project, which also had stroke orientation as a feature, the page contains more details on weight assignment, etc.). The blurring from the convolution step is also important for the orientation attribute, as it helps make the set of gradients less noisy, which helps reduce the effect of large orientation changes between frames.

• Rendering the particles - The particles must be drawn in order of their distance from the camera, from furthest to closest. This is especially the case as the strokes are rendered as a textured GL_QUAD with an alpha channel, and to not sort by depth would not look right. The QUADs are rotated to face the camera. A random jitter (slight translation in X and Y directions) is applied to each particle, this lends animations less of an artificial feeling.
