Abigail J. Sellen
Rank Xerox Research Centre (EuroPARC), Cambridge
Michael C. Sheasby
SOFTIMAGE/Microsoft, Montreal
ABSTRACT
We describe how conventional approaches to multiparty video conferences are limited in their support of participants' ability to: establish eye contact with other participants; be aware of who is visually attending to them; selectively listen to different, parallel conversations; make side comments to other participants and hold parallel conversations; perceive the group as a whole; share documents and artifacts; and see co-participants in relation to work-related objects. We present some design alternatives to these conventional videoconferencing approaches, describe the prototypes we have developed, and discuss their experimental evaluation.KEYWORDS: multiparty, videoconferencing, design, eye contact, gaze
This chapter focuses on the particular problems of supporting multiparty meetings with video. In some respects, multiparty meetings exacerbate the problems inherent in two-party video meetings. In other respects, they present problems specific to the multiparty case. By experimentally evaluating conventional approaches to multiparty videoconferencing, we are able to explicate many of these problems. We then suggest design alternatives in the form of prototype systems which are themselves subjected to empirical evaluation. The primary intent of this chapter is to communicate the rationale behind our different design ideas, what we have learned from implementing and evaluating them, and the direction that we are heading in the future.
Figure 1. The output of multiple cameras A, B, C and D (each at different sites) shown tiled, in separate quadrants of the screen,. Typically, the images are combined at a central location using the PIP device. The output is then broadcast to each participant.
One obvious problem with this approach is that it breaks down as
the number of remote sites increases due to the decreasing size of the
tiled images. But closer consideration reveals a number of other problems
in supporting multiparty videoconferences this way.
First, participants using this approach are limited in their ability to establish eye contact with other participants, and to be aware of who, if anyone, is visually attending to them. Because there is a single camera and monitor, participants cannot tell who is looking at them as opposed to the other participants. Neither can they establish eye contact with any one of the participants to the exclusion of the others (mutual gaze). Further, because all participants occupy the same general area in the visual field (i.e. a single monitor), there is no need to turn the head to speak or listen to different participants. One can assume that supporting head-turning and gaze is an important consideration, as they have been shown to serve a number of communicative functions as well as helping to manage turn-taking and floor control (Argyle et al., 1973; Exline, 1971).
Participants using this approach are also limited in their ability to
listen to simultaneous conversations. One significant factor contributing
to this problem is the way the audio is configured. Typically, the audio
from all participants comes from a single speaker. In contrast, when people
physically occupy the same room, separate speech streams emanate from different
points in space. It is this in part which makes it possible to selectively
attend to ongoing parallel conversations (the "Cocktail-Party Effect",
Cherry, 1953; Egan, Carterette & Thwing,1954). This is made difficult
when these spatial cues are eliminated.
These problems taken together represent serious design deficiencies
which motivated us to try a different approach which would offer support
for selective gaze and head-turning, and for selective listening.

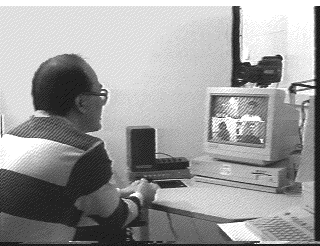

Figure 2. A four-way videoconference using a PIP device. All participants see the same split screen, which includes an image of themselves.
The underlying concept behind Hydra is to replace each of the remote meeting participants with a video surrogate (Sellen, Buxton & Arnott, 1992). In simulating a 4-way round-table meeting, the place that would otherwise be occupied by a remote participant is held by a camera, monitor and speaker, as shown in Figure 3.
Figure 3. A four-way videoconference using Hydra. Each Hydra unit contains a video monitor, camera, and loudspeaker. A single microphone conveys audio to the
remote participants.
Using this technique, each participant is presented with a unique
view of each remote participant, and that view and its accompanying voice
emanates from a distinct location in space. The net effect is that conversational
acts such as gaze and head turning are preserved because each participant
occupies a distinct place on the desktop.
The fact that each participant is represented by a separate camera/monitor pair means that gazing toward someone is effectively conveyed. In other words, when person A turns to look at person B, B is able to see A turn to look towards B's camera. The spatial separation between camera and monitor is small enough to maintain the illusion of mutual gaze or eye contact. Looking away and gazing at someone else is also conveyed, and the direction of head turning indicates who is being looked at. Furthermore, because the voices come from distinct locations, one is able to selectively attend to different speakers who may be speaking simultaneously.
We carried out a series of empirical studies to more closely examine and quantify the behavioural differences between Hydra and the PIP system (Sellen, 1992; 1995). These studies focused primarily on objective measures of speech such as turn length, amount of simultaneous speech, and floor control parameters.
We hypothesized that the lack of support for selective gaze and head-turning, and for selective listening in the PIP system would affect conversational interaction and make certain conversational acts difficult in comparison to the Hydra system. For example, we predicted that turn-taking might be adversely affected with the PIP system, and that holding parallel conversations and making side comments to others in a group would be difficult.
While there was no significant difference between the PIP and Hydra approach with respect to some measures of turn-taking behaviour, Hydra did, as expected, support parallel and side conversations. No such conversations were observed in the PIP approach. In addition, the majority of subjects expressed a preference for Hydra in their subjective evaluations, citing the ability to selectively attend both visually and auditorily as the major reasons for preferring it over the PIP system. Some subjects commented that Hydra has much more of an interactive "feel" about it than the PIP approach to multiparty meetings. Thus the results are in line with the original intentions motivating the design of Hydra.
We are exploring ways to further exploit the properties of the preserved personal space. For example, by adding a proximity sensor to each Hydra unit, one will be able to establish a private audio link to another participant by leaning towards that person's unit. The gesture is the same as in everyday conversation, and conventional social mores are preserved, since the others can see not only that one person is making a side comment, but to whom. Once this mechanism is in place, and with the benefits of dedicated speakers for each participant, we hope to support parallel conversations, side comments, and breaking into conversational sub-groups even more effectively. All of these important aspects of conversations and meetings are poorly supported by existing technology.
Since this system was developed, Ichikawa, Okada, and colleagues (Ichikawaet al., 1995; Okada et al., 1994) have developed a multiparty system which contains some of the same properties of Hydra. The MAJIC system projects life size images on a semi-transparent surface allowing cameras to be placed behind the screen. Speakers are also placed behind the screen image of each participant. Thus the MAJIC system also provides support for selective gaze and head turning. The much larger images may be a much better approach for many multiparty situations. However, because it uses projection and large screens, one drawback of the system is that it does not sit unobtrusively on a desktop, but is an altogether more imposing type of configuration, with less flexibility to be moved around and combined with other systems, as will be described in the last section of this chapter.
The advantage of this approach is that it scales up well to large
groups. It is also an interactive system responding to the dynamics of
the conversation. However, it also has some serious drawbacks which were
revealed in our empirical studies (Sellen,1995):
Figure 4. Voice-Activated switching. "Livewire" is an implementation of a voice-activated switching system. The voice of the speaker causes the speaker's image to be seen full frame on all other screens.
These design flaws represent considerable problems for systems like
Livewire that depend on voice-switched full screen images. Not only have
we found that this sort of "tunnel vision" is inappropriate in a multiparty
situation, but that the lack of control over this selective view is also
problematic. When Livewire was compared with the PIP system and an audio-only
system (Sellen, 1995), the majority of the subjects said they liked the
PIP system best, preferring the Livewire system only slightly more often
than having no video at all.
While obviously not an ideal solution to supporting multiparty conferences, one advantage of developing Livewire was to allow us to assess a system similar to what is commercially available, and to use it to compare our alternative designs to current practice. In addition, evaluating the shortcomings of such systems can serve as a basis for further design innovations, as is described in the next section.
Building upon the Livewire technology, the Brady Bunch was partially inspired by two systems developed at Rank Xerox EuroPARC and Xerox PARC: Portholes (Dourish & Bly, 1992), and its predecessor, Polyscope (Borning and Travers, 1991). In brief, Portholes, (illustrated in Figure 5), is a system which repeatedly takes and distributes snapshots of the workgroup to the workgroup. The images are shot using one or more frame-grabbers which have access to the group members' video cameras (without disrupting other uses of the cameras, such as conferencing). The individual snapshots are subsampled and distributed over the local (or wide) area network servicing the group, and combined with the shots of others in the group. The net effect is that each group member receives relatively recent still pictures of the office or workspace of each group member, which are displayed on their workstation. Portholes also has embedded functionality that permits users to access one another over the accompanying A/V network. Hence, it has a control as well as an awareness function.

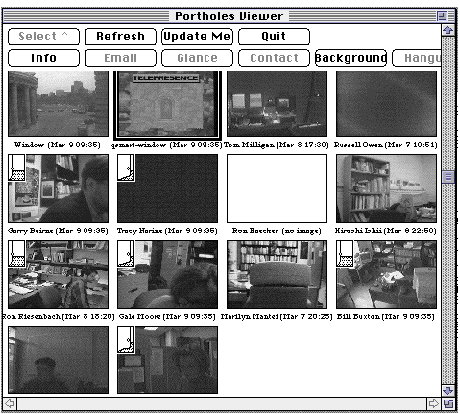

Figure 5. The Telepresence implementation of Portholes. Every 5 minutes, a snapshot of each member of the workgroup is distributed to all other members. In the Telepresence implementation, this is accompanied by an icon of that member's door icon, which indicates that person's degree of accessibility. The resulting tiled image of one's workgroup affords a strong sense of who is available when. It also can serve as a mechanism for making contact, finding phone numbers, and avoiding intruding on meetings.
The Brady Bunch design combines the Portholes/Polyscope approach
with Livewire. A live voice-switched image is supported by a set of slow-scan
video images. The static images are snapshots of the other meeting participants,
grabbed using a technique similar to Portholes. While the initial design
placed the slow-scan images in a ring around a larger live image directly
on the workstation monitor, the first implementation of the Brady Bunch
(Sheasby, 1995) placed the live image on a separate monitor, leaving the
slow-scan images on the user's workstation desktop.
The Brady Bunch was designed to be used in focused group interaction, where all group members play an active role in a discussion. In normal operation, the current speaker is displayed in the large Livewire image, while the other meeting participants are displayed in the slow-scan images. The slow-scan images provide a sense of the context of the larger group and give group members who are not talking some presence in the meeting. This addressed the first problem that we found with Livewire.
The second problem of lack of feedback was addressed by the addition
of an "on camera" indicator to the Livewire system. This consisted of superimposing
a red dot on the live image displayed in the current speaker's video monitor
to confirm to them that they were being viewed by the others.
The third and fourth problems - the ability to glance at others, and
to have side conversations with them- was addressed by the addition of
two features. The first feature allows a user to "glance" at another user
(view someone other than the speaker in the main window) by clicking on
that person's slow-scan image. That person is then displayed as full motion
video on the live monitor, replacing the speaker. This allows participants
to override the voice-activated switching system to monitor non-speaking
members of the meeting. The second feature allows two users to have "side
conversations" by allowing them to drop out of the group meeting to communicate
privately with each other. In this mode, pairs of users can communicate
via a private and secure audio-video link. The method of connecting like
this is similar to that for glancing at another user but involves acceptance
by the remote user.
In face-to-face meetings, there are many inherent visual cues that convey the fact that one is being glanced at. In order to provide this kind of information in the Brady Bunch system, we used the slow scan images to present status cues. For example, if one was being glanced at, the name of the person glancing would alternate with the word "glancing" in the slow-scan window representing that person. Requests for side conversations were handled similarly.
The Brady Bunch was tested using the board game 'Diplomacy'. In this game of strategic negotiation, players attempt to dominate a stylized map of the world by invading one another's territory (see Figure 6). The rules are set up so that a player is unlikely to win alone; the players are intended to form alliances with one another to win specific battles. The point of the game is that players must negotiate with skill and persuasiveness, since treaties can be ignored and cheating one's allies is common behaviour.
The game was chosen because it depends heavily on the accurate assessment
of the sincerity of a distant user. In this respect the game reflects actual
negotiation, a common and important business practice. Thus, although difficult
to measure, a player's success at the game is directly related to the translation
of their face-to-face communication skills to the teleconferencing medium.
In the experiment, subjects made heavy use of the glance and side conversation
features in the Brady Bunch system, although the difference between them
appeared hazy to some subjects. During these side conversations, users
could be seen to spend a great deal of time visually monitoring each other
as if trying to assess the truth of what the other was saying. Thus, the
ability to monitor someone other than the speaker, and to break into conversational
sub-groups was shown to be important, at least in this kind of game situation.
The experimental evaluation also revealed that users wanted the system to enable them to engage in side conversations of more than two people. They also wanted the system to provide them with information about when side conversations or glances were occurring between participants other than themselves.

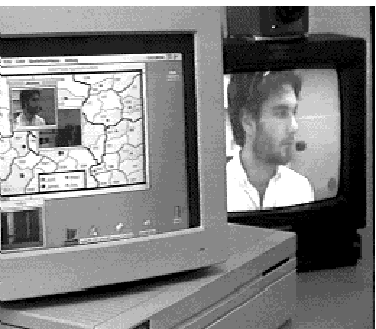

Figure 6. The Brady Bunch Approach used with the game "Diplomacy". A full-motion voice-switched video image of the current speaker on a separate monitor is supported by slow-scan images of all meeting participants in separate windows on the workstation display.
In a subsequent version of the Brady Bunch, we intend to explore
better ways of providing feedback. One potential solution is to highlight
the borders of the slow-scan windows of users to tell each participant
who is viewing them. For example, if I am talking, under normal circumstances,
all participants' borders will be highlighted to indicate that everyone
is viewing me. If I then lose the floor, the windows revert to their normal
state. If I am not talking, I may still be glanced at by others, which
would be indicated by those people's windows being highlighted. Notice
that this solution removes the need for the red "on camera" dot in the
live monitor.
What is missing in this approach, however, is the provision of feedback to users to tell them that other people are glancing at or are having side conversations with each other. Private conversations between distant users could be indicated with another form of highlighting, but other solutions need to be explored, such as altering the layout of the windows to indicate connections between distant users.
This method of providing information about who is attending to whom is intended to compensate for the lack of head turning and gaze cues people use in everyday conversation, and which we have sought to provide in Hydra. We hope to experiment to see whether this kind of compensation is effective.
In addition, like most existing practice, this approach does not have the spatial audio cues that formed the basis of Hydra. We may be able to effectively spatially distribute the individual voices using techniques such as those described by Ludwig et al. (1990), and Cohen & Ludwig (1991).

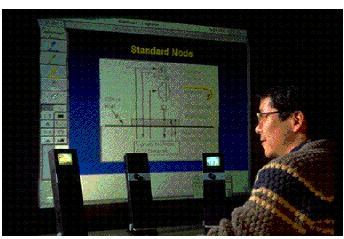

Figure 7. Shared task and person space. A multiparty meeting concerning a technical drawing is illustrated. The technical drawing is displayed on the large screen behind the Hydra units (which are used for the shared presence of the participants). Each participant can see and mark up the technical drawing. The configuration supports gaze awareness towards people and document.
It is worth briefly contrasting this configuration with the ClearBoard system of Ishii et al. (1993). Briefly, ClearBoard superimposes the image of the remote person on the work surface. In the dyadic case, this affords excellent and seamless fine grain gaze awareness. However, while elegant, the technique breaks down in the multiparty case. Hence, our need to pursue other design alternatives.
Finally, note that in at least one way, this electronic configuration improves upon the analogous "same place" configuration. Assuming that the configuration is replicated for all participants, each participant has the electronic whiteboard right in front of them. In contrast, in the same place, round-table situation, some participants would have to turn partially or completely around in order to see the physical whiteboard.
Key to this configuration is the fact that the Hydra units can be placed around the periphery of the desk, thereby affording a seamless way of integrating conversation and collaborative interaction with a document. Overall, the approach has been to model the social and interaction skills seen in the everyday world: that is, people standing around a drafting table, discussing the document, and changing their gaze from document to person by simply raising/lowering, or turning their heads. Again, this approach tries to provide some support for conveying people's orientation to shared, work-related documents.
Worth noting is how the previous two examples can be combined. Imagine that the person shown in Figure 7 is also working on an Active Desk. Furthermore, let us assume that information on an individual's desk is their private space, and information on the electronic whiteboard is public. From the resulting relationship between space and function, the power of gaze awareness is extended. Now, for example, I can tell if you are looking at me, at the public space, or your private notes. Our assumption (one which we are exploring more formally) is that these additional cues - being based on everyday skills - facilitate the quality of the interaction and the naturalness of the ensuing dialogue.
Some of the more unconventional approaches we have described provide
much better support for these aspects of multiparty meetings, and as much
as possible we have tried to evaluate and assess the extent to which they
do so. We have also tried to document the particular design problems that
still exist, and suggest how the designs might be improved. So far, we
have found that the process of evaluation acts to inspire new design possibilities
as much as it reveals design flaws.
The design space for multiparty video systems is rich and the issues are important. Our view is that in any such investigation, field trials and experiments with real subjects are critical. The dilemma is that to test, one needs a working system without making too much of an investment in a working system that has not been tested. Clearly, this is a case for iterative design and rapid prototyping, as we hope we have demonstrated in this chapter.
