CSC270 Sept 23 Lecture I
Mean Value Theorem (MVT)
Theorem
If f() is continuous and differentiable on an interval [a,b], then
there exists some c in (a,b) such that
f(b) - f(a)
f'(c) = -----------
b - a
Equivalently,
f(b) - f(a) = f'(c) (b - a)

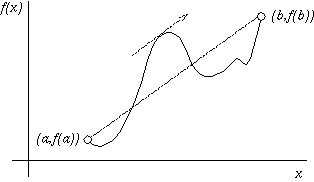

Above, (f(b)-f(a))/(b-a) is just the slope between point (a,f(a)) and
point (b,f(b)). This is the average, or `mean', slope of the function
between those two points. The theorem simply says that there is a
point in (a,b) for which the function *has* that mean slope.
Taylor series
Suppose we want to model a function f() near a point c. Suppose
further that f() is infinitely differentiable at c and that we know
f'(c), f''(c), and so on.
Then we can use a polynomial function p() with the same value and
derivatives to *approximate* f(). For this polynomial, we have the
following constraints:
p(c) = f(c)
p'(c) = f'(c)
p''(c) = f''(c)
and so on.
A polynomial that satisfies these constraints is the ``Taylor
Polynomial of degree n'':
2 (n) n
f''(c) (x-c) f (c) (x-c)
p_n (x) = f(c) + f'(c) (x-c) + ------------- + ..... + -------------
2! n!
If n goes to infinity, we get the Taylor Series. For many functions
(among them the polynomials), the Taylor Series converges to the
function. That is, p_n(x) = f(x) for all x. In this course, we won't
characterize the functions for which the Taylor Series converges.
When approximating a function f() with the Taylor polynomial p_n() of
degree n, the *residual* is
r_n(x) = p(x) - f(x)
Taylor's Theorem says that if the n derivatives of f() exist in an
interval [a,b] that contains c, then there is *some* x_{max} in [a,b]
such that
(n+1) n+1
| f (c) (x_{max}-c) | n+1
r_n(x) <= ------------------ * | (x-c) |
(n+1)!
for all x in [a,b]. This means that the residual is bounded by some
constant (a function of x_{max}) times (x-c)^{n+1}. In other words,
the residual is ``of the order of (x-c)^{n+1}, written:
n+1
r_n is O( (x-c) )
This gives us an idea of how fast the residual diminishes as x
approaches c.
Newton's method of root finding
[Readings section 3, pages 63-64]
Suppose an algorithm computes successive approximations, x1, x2, x3,
..., to a root of a function f(). Consider the first-order Taylor
expansion about the i^th appoximation:
p(x) = f(x_i) + f'(x_i) (x - x_i)
Since p(x) is approximately f(x), we set p(x) to zero and solve for
the root x:
f(x_i)
x = x_i - -------
f'(x_i)
Since p() is only an approximation to f(), this root x is only an
approximation to the root of f(). So we'll use it as our next
approximation, x_{n+1}. If p() is a ``good'' approximation of f(),
x_{n+1} should be a better approximation to f()'s root than was x_n.
This is called Newton iteration. The algorithm computes
x_1 = x_0 - f(x_0) / f'(x_0)
x_2 = x_1 - f(x_1) / f'(x_1)
x_3 = x_2 - f(x_2) / f'(x_2)
and so on.

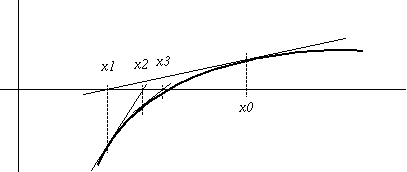

Intuitively, x_{n+1} is chosen as the point where the tangent at
(x_n,f(x_n)) cuts the x axis.
Theorem [page 64]
If x_n is in an interval [a,b] such that
- f(a) f(b) < 0
- f' is not zero in [a,b]
- f'' doesn't change sign in [a,b]
- f(a)/f'(a) < b-a and f(b)/f'(b) < b-a
then the Newton iteration converges to a root of f().
Newton iteration converges quadratically, provided the initial guess
x_0 is ``good enough''. To show this requires a bit of calculus,
which is presented in Section 2.2 of the Readings. In brief, if the
error in the n^{th} iteration is e_n, the Readings show that
2
e_{n+1} is proportional to e_n
Secant method of root finding
[Readings section 3, pages 69-71]
The Newton method requires the first derivative f'(), which is
sometimes not available to a program. The secant method avoids this
problem.
To get x_{n+1} from x_n, the Newton method followed the tangent at x_n
until it intersected the x axis. The secant method will approximate
the tangent by drawing a line between two close points on the curve
f(x). Such a line is a `secant'. Note that, as the two points get
closer, the secant approaches the tangent.
Thus f'(x_n) is approximated by
f(x_n) - f(x_{n-1})
f'(x_n) ~ -------------------
x_n - x_{n-1}
and the Newton iteration is modified as follows:
x_{n+1} = x_n - f(x_n) / f'(x_n)
x_n - x_{n-1}
~ x_n - f(x_n) * -------------------
f(x_n) - f(x_{n-1})
x_{n-1} f(x_n) - x_n f(x_{n-1})
= -------------------------------
f(x_n) - f(x_{n-1})

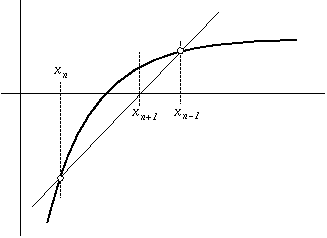

As with Newton iteration, the secant method uses for its next
approximation to the root the intersection of the secant with
the x axis.
The secant method converges a bit slower than the Newton method:
1.62
e_{n+1} is proportional to e_n
As with the Newton method, there are situations in which the
secant method will not converge to the root.
